Dynamic Taint Analysis
Dynamic taint analysis is widely used in software security for automatic detection and signature generation of exploits in commodity software. This concept was first presented in a paper published in 2006 at NDSS, one of the top conferences in security.
Context and Importance
At the time this technique was introduced, worms were a significant threat because they could propagate by exploiting vulnerabilities in software without requiring any human interaction. Unlike earlier viruses that needed human intervention to spread (for example, via infected floppy disks), internet worms caused greater harm by leveraging fully automated propagation. Slammer, for instance, managed to scan 90% of the internet within 10 minutes in search of vulnerable SQL Server instances. When it found a target, it infected that system and then repeated the process to infect many other machines. In contemporary cybersecurity, we still see that human intervention is sometimes necessary for transferring malware from one system to another, but automated internet worms remain a crucial motivator for developing robust defenses.

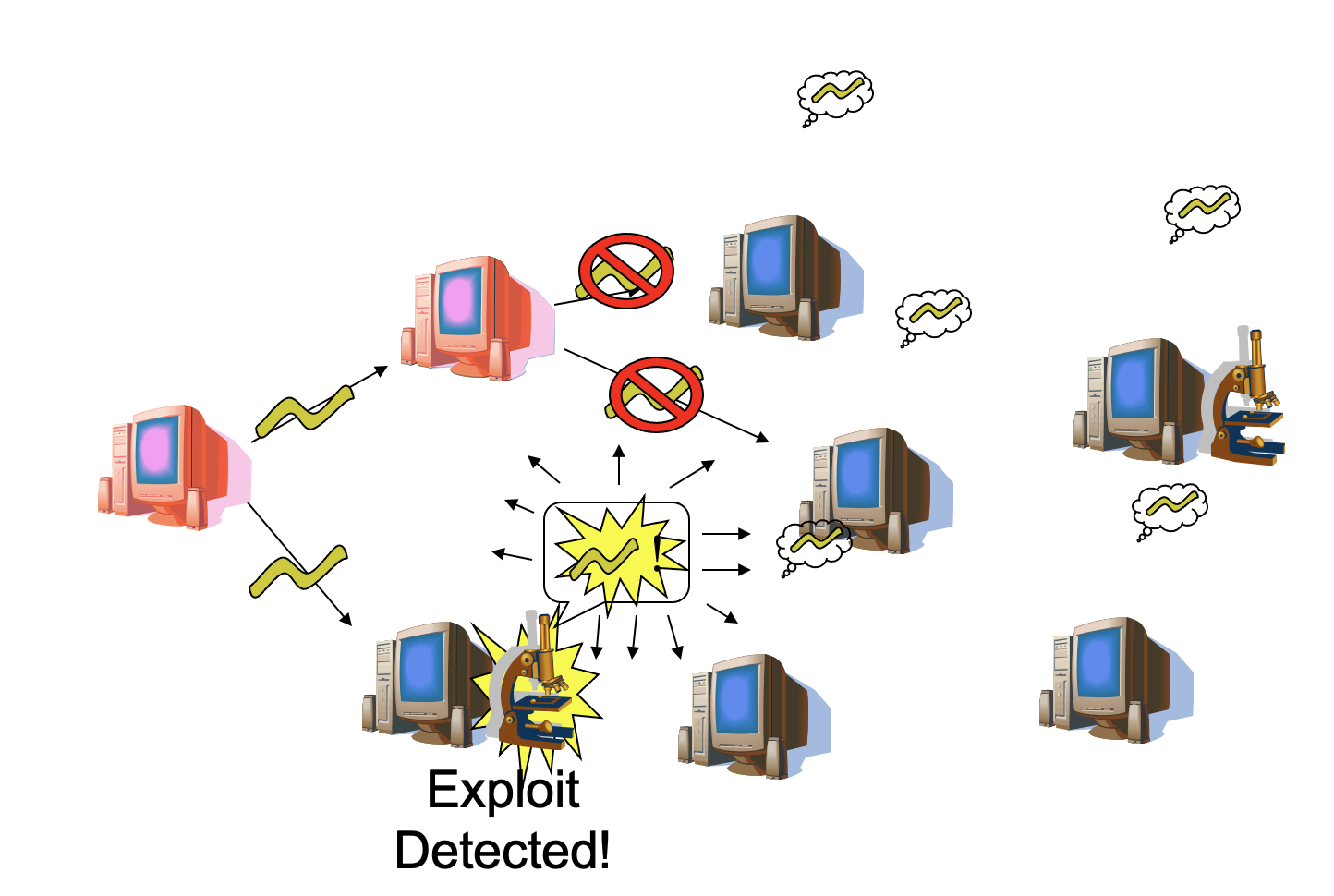

A popular strategy for automatically defending against such worms involves analyzing programs (for example, SQL Server) in an instrumented environment. This approach is frequently implemented on honeypots or specialized servers that can afford the performance overhead of additional monitoring. These monitored instances detect if an attacker exploits a vulnerability, and upon detection, a signature (or filter) is generated to prevent the malicious input from impacting other systems. By disseminating this “vaccine” or signature to all vulnerable machines, defenders effectively control the spread of the worm. The entire process, much like vaccination against a virus, seeks to immunize the overall population (the network) after a threat has been discovered on a smaller scale.
Architecture Overview

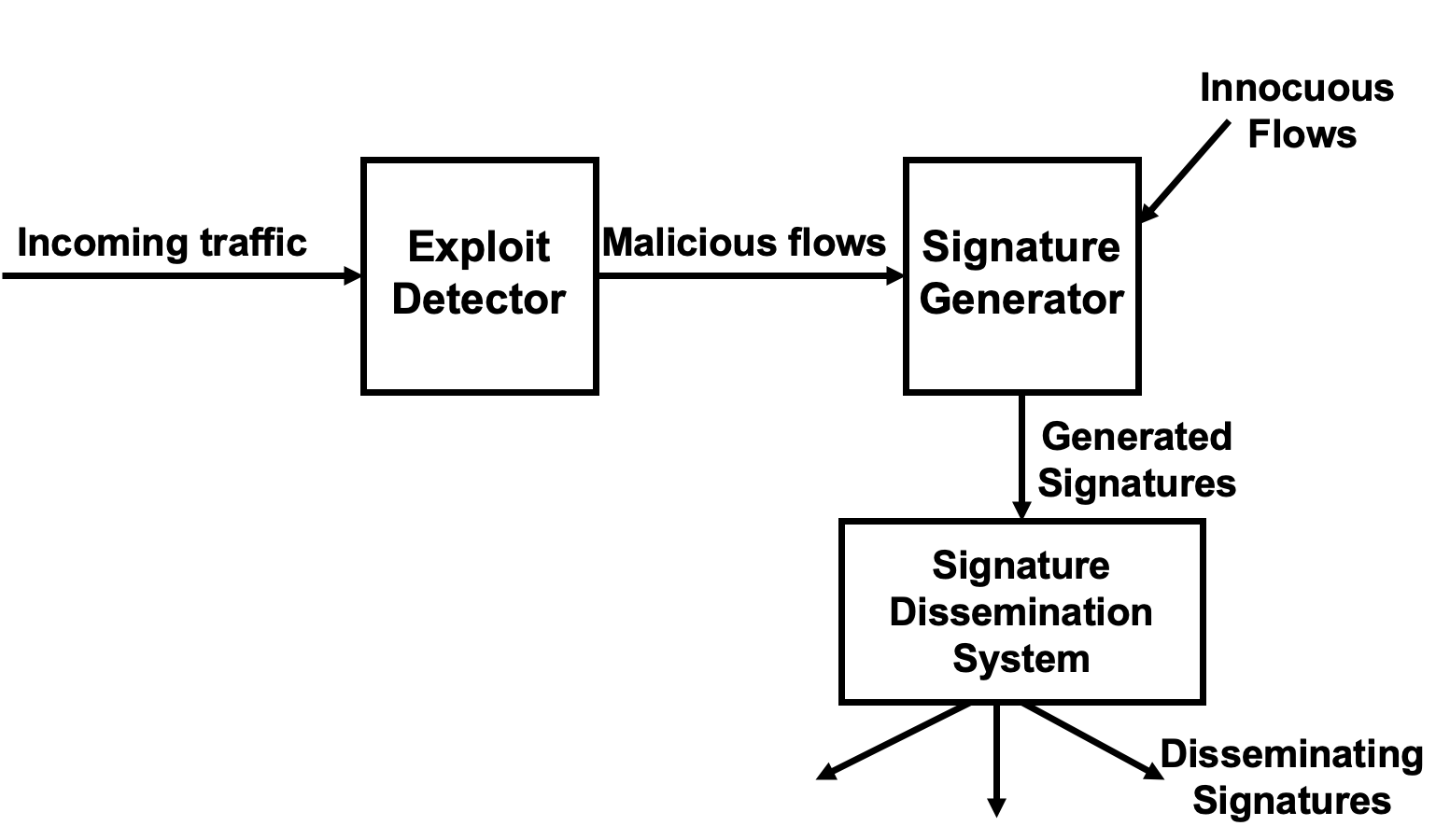

The architecture behind an automatic worm defense can be sketched in terms of detection, signature generation, and distribution of filters. When malicious input arrives, the instrumentation layer—built with dynamic taint analysis—identifies if that input is responsible for an exploit. It then synthesizes a signature or filter that is broadcast to other vulnerable hosts. They can then block future attacks matching that signature. In this way, the attack may infect a few instances initially, but widespread compromise is prevented as soon as the signature is disseminated and deployed.
Understanding Dynamic Taint Analysis
In software vulnerabilities such as buffer overflows, format string vulnerabilities, and double free bugs, the risk arises when untrusted user input finds its way into critical structures like instruction pointers, function pointers, or dangerous system calls. Dynamic taint analysis addresses this by labeling certain inputs or sources as “tainted.” Everything else remains “clean.” As the program executes, if the tainted data is ever used in, for example, a program counter or a function pointer, the analysis layer flags a potential exploit.
This process is powerful because it does not rely on specific exploit patterns. It instead focuses on generic high-risk uses of untrusted data. Thus, dynamic taint analysis can catch zero-day vulnerabilities and is not constrained by traditional signature-based detection methods.
Advantages
The method requires no special knowledge of the underlying vulnerability or exploit. Rather than matching known malware signatures or specific offsets, dynamic taint analysis monitors how data from potentially dangerous sources is handled and whether it ends up in a control-sensitive position. This capability makes it especially effective against unknown (“zero-day”) threats. Early implementations of this approach built on frameworks like Valgrind, taking advantage of its instrumentation features. This allowed the creation of shadow memory, where each register and memory location is tracked to see if it carries tainted or clean data.
In practice, once a return address is flagged as tainted, the system can trace back to the exact bytes of external input that caused it. A simplistic signature generator might then say: “Any incoming packet containing these four suspicious bytes at offset 10 to 13 is likely part of an exploit and should be blocked.”
Components of Taint Analysis

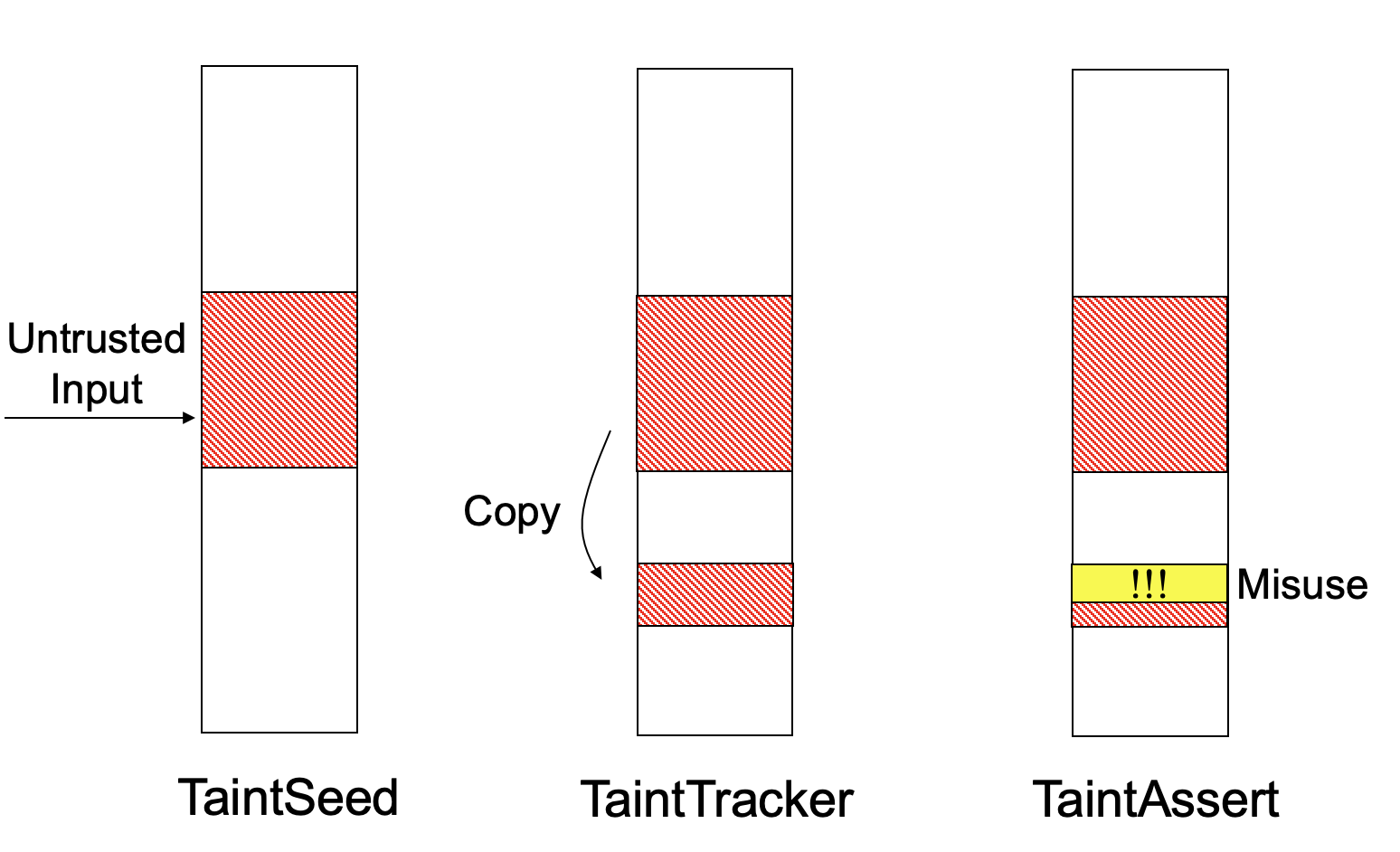

The technique involves three conceptual components: the Taint Seed, Taint Tracker, and Taint Asserts. Inputs from untrusted sources (for example, network sockets or user-supplied files) are taint-seeded, meaning they carry the “tainted” label in shadow memory. As the program executes normal instructions, the taint tracker logic updates the taint status of all affected locations. Finally, if that tainted data influences a critical location—like a control flow jump—Taint Asserts triggers an alert and invokes further exploit analysis.
More Details of Taint Tracker
The taint tracker is crucial because it must handle numerous instruction types accurately. If one register is tainted, any instruction moving data from that register to another location must also propagate the taint. In addition, certain arithmetic instructions behave differently; for instance, an XOR of the same register (xor eax, eax) sets that register to zero and, by convention, “clears” the taint. The tracking logic also becomes more subtle when dealing with index-based memory accesses, since it may be unclear whether a tainted pointer should imply that the loaded or stored value is tainted.
Security Applications
Dynamic taint analysis underlies more than worm detection. For instance, in information leakage analysis, tainting can mark private data, such as passwords, and then detect if that data is sent externally. Malware analysts can also label suspicious inputs and watch how they propagate through malicious code. Taint analysis likewise helps guide fuzzing tools by identifying which parts of the input truly matter to the program. Finally, it can facilitate symbolic or concolic execution by showing which bytes or bits of input lead to new paths in a binary.
Pointer Tainting
A notorious difficulty arises with pointer tainting. In an instruction that reads from a memory address composed from a tainted register, it can be debated whether the loaded data should become tainted or not. In certain scenarios like table lookups or character encoding, it might be perfectly legitimate for a tainted pointer to select which data is read. Overly aggressive pointer tainting, however, causes “taint explosion,” where nearly everything ends up tainted, making the analysis meaningless. Under-tainting in the pointer context can miss actual exploits in which the attacker manipulates a pointer that then leads to privileged behavior. Managing this trade-off requires carefully tailored propagation rules.
Over Tainting and Under Tainting
Taint granularity is a central question for dynamic taint analysis. Bit-level tracking offers the highest fidelity but at the cost of performance overhead and implementation complexity. Byte-level tracking is a commonly chosen middle path, in which a single bit being tainted results in that entire byte being treated as tainted. Word-level tracking tends to be too coarse for most modern analyses because a small amount of taint can needlessly pollute larger chunks of data.

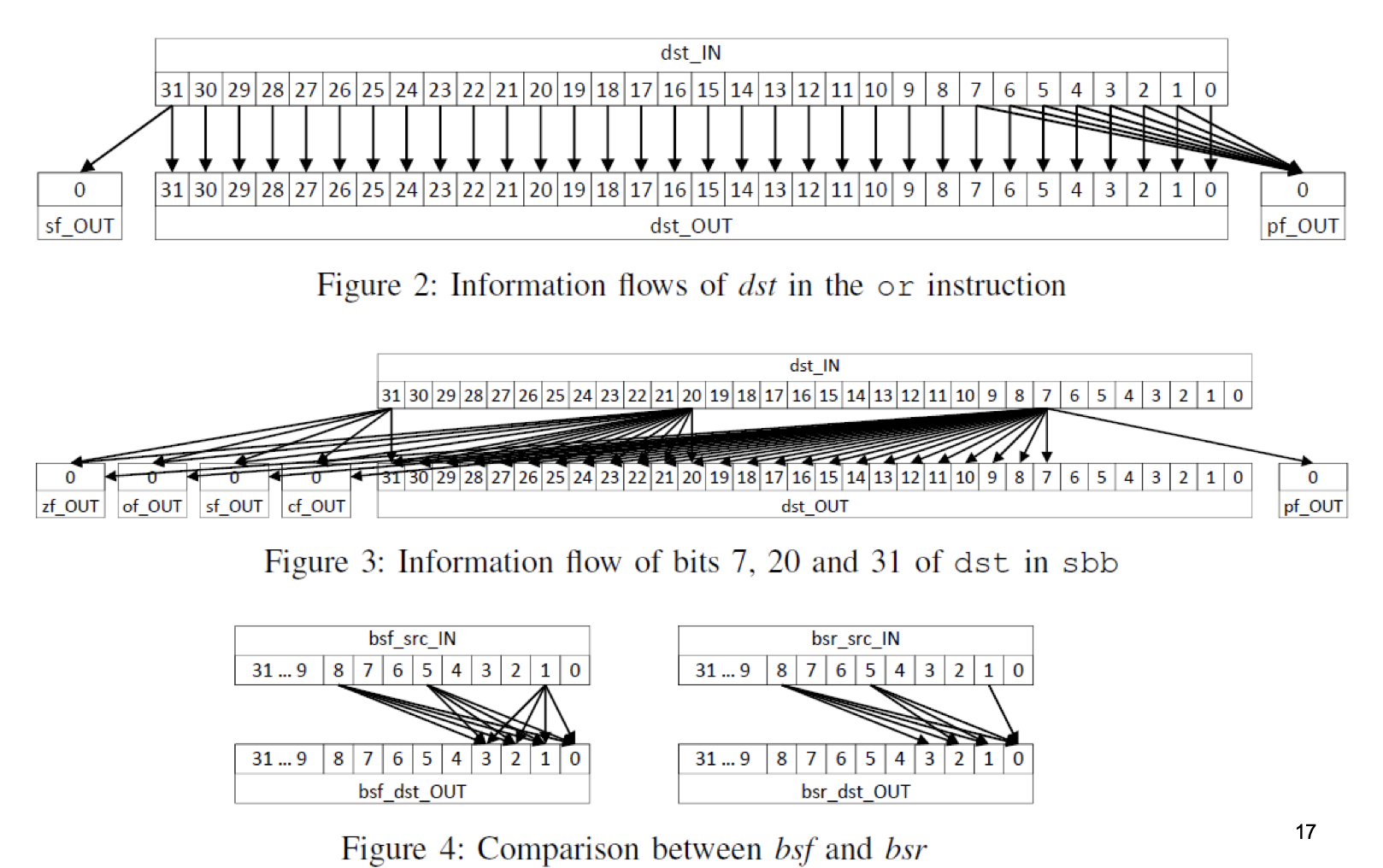

Examples of Bit-Level Tainting Rules
Further precision in tracking can be gained by maintaining taint status on individual bits. Some frameworks introduce specialized rules for instructions like OR, AND, and shifts so that the resulting taint status reflects the exact influence of each bit. For example, an OR instruction that sets a bit to one might eliminate any notion of taint on that bit if the analysis confirms that the new value is definitely one regardless of the input’s prior state. Handling these cases correctly can drastically reduce false positives in real-world scenarios.
Rules for x86 Instructions
On x86, instructions such as XOR, SUB, ADD, and shifts can propagate taint in surprising ways. For example, subtracting a constant from a tainted value might keep upper bits tainted or might propagate partial taint to lower bits, depending on how overflow or borrowing occurs. Many open-source taint analysis frameworks, such as those built on QEMU, define a large table of propagation rules. Each rule describes how to update taint flags when an instruction executes. Although some rules seem minor, they collectively determine whether the analysis is accurate or prone to spurious tainting.
New Formally-Verified Precise Rules
In more recent systems, researchers have begun using formal verification to check these taint rules for soundness (tainted bits should never become untainted incorrectly) and precision (untainted bits should not become tainted when they truly should not). Certain instructions, such as DECREMENT, appear trivial, yet thorough formal verification can lead to subtle improvements that further reduce overtainting. Each improvement can profoundly affect the final analysis results by ensuring that only the correct bits or bytes remain tainted.
Bit-Precision Tainting in DECAF
Building on earlier frameworks like TEMU, the DECAF system refines the taint rules at a bit level. It collects a series of propagation methods—covering loads, stores, arithmetic, logic, and control instructions—and applies carefully checked logic to decide the fate of every bit. This method can appear complex due to the insertion of additional instrumentation to preserve intermediate values, but it yields a more accurate taint map and avoids the pitfalls of both overtainting and under-tainting.

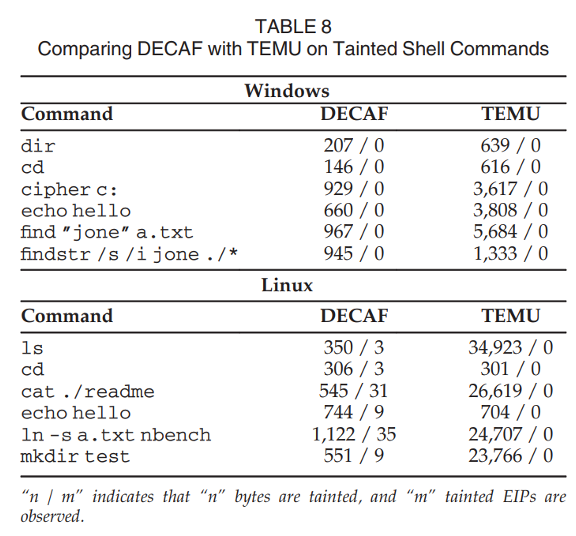

Comparing DECAF with TEMU on Tainted Shell Commands
A comparison of DECAF with the earlier TEMU platform for taint analysis revealed a marked difference in how many bytes ended up tainted during typical usage scenarios. Sending commands like “DIR” or “FIND” in a console session influenced thousands of bytes in TEMU’s output but only a fraction of that in DECAF’s results. While DECAF sometimes showed that keystrokes could even taint the instruction pointer, further investigation confirmed such behavior was correct in context, revealing a legitimate kernel function pointer dependent on user input. Although dynamic taint analysis can sometimes appear to generate perplexing results, careful analysis of each case ensures that only meaningful exploit paths are flagged.
Ending Notes
It is also worth noting that taint analysis cannot solve all security problems outright. There can be cases of false positives, where benign code patterns appear exploit-like, and false negatives, where an exploit manages to bypass the defined propagation rules or where certain instructions are not handled with enough granularity. Nevertheless, dynamic taint analysis remains a formidable approach to detecting and analyzing a wide variety of vulnerabilities.
